CWDM Multiplexers
KanesBridge CWDM (Coarse Wavelength Division Multiplexing) solutions are perfect for enterprises and telecom access networks looking to enhance their connectivity with efficient, short-range applications. CWDM is ideal for point-to-point topologies, supporting up to 18 channels with data rates up to 10Gb, making it the go-to choice for networks that require reliable performance without the complexity of long-haul systems.
Key Applications:
- Line Monitoring: Keep track of network performance with real-time insights.
- WDM Networks: Seamlessly integrate with existing wavelength division multiplexing infrastructure.
- Telecommunications: Enhance voice and data transmission with high-quality connections.
- Cellular Networks: Boost mobile data traffic capacity and reliability.
- Fiber Optical Amplifiers: Extend the reach of your optical signals.
- Access Networks: Connect end-users with efficient and scalable solutions.
Why Choose KanesBridge CWDM MUX/DEMUX:
- Tailored Solutions: Our products can be customized to fit your specific network requirements, ensuring the perfect match for your unique needs.
- Reliable Performance: Designed for efficiency and reliability in environments that do not exceed 10Gb and 18 channels.
KanesBridge provides cutting-edge CWDM MUX/DEMUX devices, designed to enhance your network’s efficiency and capacity. Our solutions leverage advanced technologies and proprietary designs to ensure superior performance and reliability.

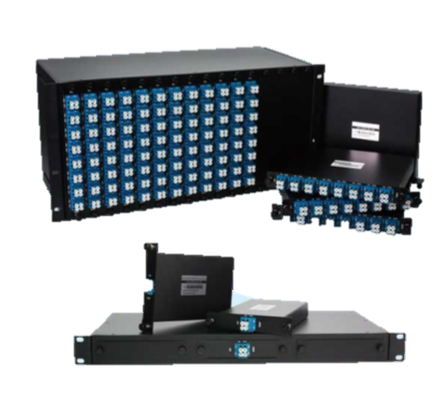

KanesBridge CWDM MUX/DEMUX Types:
- Type 1: CWDM MUX/DEMUX Devices (4, 8, 16 Channels)
- Utilizes thin-film coating technology.
- Features a proprietary design with non-flux metal bonding micro-optics packaging.
- Ideal for high-performance multiplexing and demultiplexing.
- Type 2: 1×2 CWDM Devices (3 Ports)
- Employs thin-film coating technology.
- Incorporates a proprietary design of non-flux metal bonding micro-optics packaging.
- Perfect for efficient signal routing in compact applications.
- Type 3: Mini CWDM Devices (4, 8, 18 Channels)
- Integrated optical modules using a proprietary optical bench platform.
- Designed for compact, high-density environments requiring robust performance.
KanesBridge CWDM Multiplexers
| Type | Channel Spacing | Channels | First Channel | Package | Connector/Polishing | Fiber Diameter | Fiber Length |
| Type 1: CWDM MUX/DEMUX (1: 4, 8, 16 Channels) | 20nm | 4= 4 Channels 8=8 Channels 16=16 Channels 18=18 Channels N=N Channels | 27=1270nm …. 47=1470nm 49=1490nm …. 61=1610nm | 1=ABS 2=Rackmount 3=LGX 4=Insert 5=Specify | 0=None 1=FC/APC 2=FC/UPC 3=SC/APC 4=SC/UPC 5=LC/APC 6=LC/UPC 7=ST S=Specify | 0=250um 1=900um 2=2.0mm 3=3.0mm | 1=1m 2=2m S=Specify |
| Type | Channel Spacing | Channels | Pass Channel | Package | Connector/Polishing | Fiber Diameter | Fiber Length |
| Type 2: 1×2 CWDM MUX/DEMUX (3 Ports) | 20nm | 27=1270nm …. 47=1470nm 49=1490nm …. 61=1610nm | 1=Steel Tube 2=ABS S=Specify | 0=None 1=FC/APC 2=FC/UPC 3=SC/APC 4=SC/UPC 5=LC/APC 6=LC/UPC 7=ST S=Specify | 0=250um 1=900um 2=2.0mm 3=3.0mm | 1=1m 2=2m S=Specify | |
| Type | Channel Spacing | Channels | Express Channel | Package | Connector/Polishing | Fiber Diameter | Fiber Length |
| Type 3: Mini CWDM Devices (4, 8, 18 Channels) | 20nm | 4= 4 Channels 8=8 Channels 18=18 Channels N=N Channels | 0=None 1=1310(±50nm) 2=1260-1458nm S=Specify | 1=42.6x25x6.2 2=44x28x6.2 3=44x25x6.2 4=54x32x7.4 5=60x50x6 S=Specify | 0=None 1=FC/APC 2=FC/UPC 3=SC/APC 4=SC/UPC 5=LC/APC 6=LC/UPC 7=ST S=Specify | 0=250um 1=900um | 1=1m 2=2m S=Specify |
