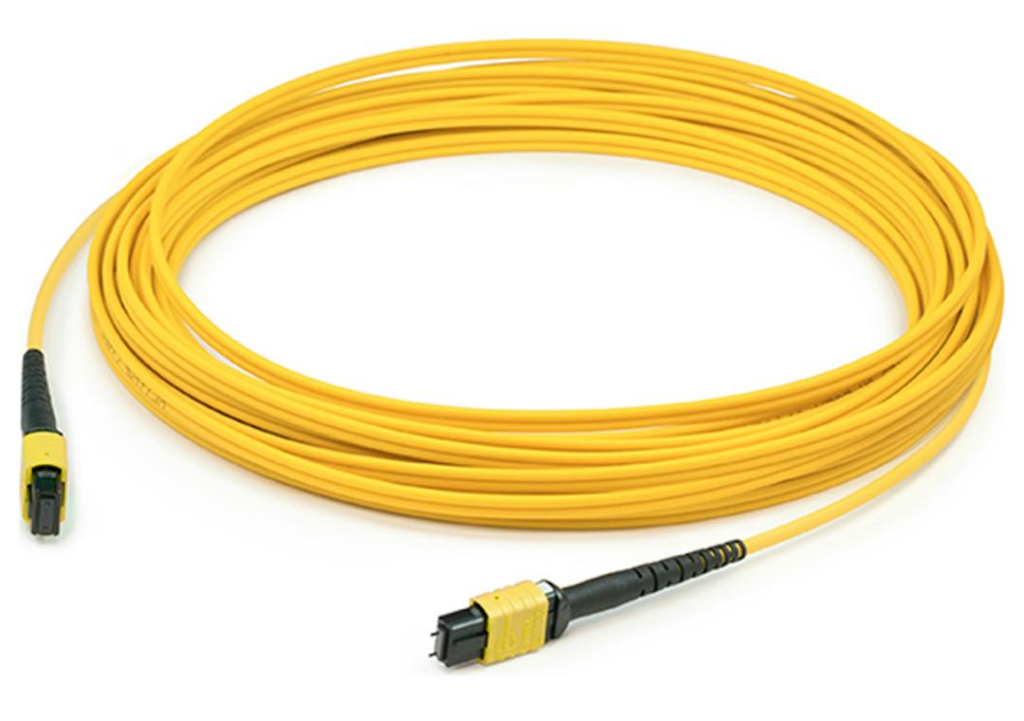

MPO/MTP Patch Cables

KanesBridge MTP®/MPO patch cables are designed to accommodate more fibers in a single multi-fiber connector, making them the ideal solution for high-density cabling in data centers. These cables support 40G, 100G, 400G, and 800G networks, offering a practical and efficient choice for both current and future network speed upgrades.

• Data Center LAN and SAN: Enhance your local and storage area networks with high-speed, reliable connections.
• LAN/SAN Switches: Ensure seamless integration and performance for network switches.
• Equipment Distribution Areas (EDA): Streamline connectivity in high-demand environments.

Our cables are defined by five key factors: Function, Polarity, Fiber Count, Fiber Type, and Cable Jacket Rating. These features ensure that our cables are suitable for various application environments and requirements.

Key Factors:

• Function:
  • Trunk Cables: Ideal for connecting high-density patch panels.
  • MTP®/MPO Breakout Cables: Facilitate connections between MTP®/MPO and LC connectors.
  • MTP®/MPO Conversion Cables: Provide network capacity and flexibility by enabling seamless transitions between different fiber types.
• Polarity:
  • Ensure the correct optical path with TIA 568 standard connection methods: Type A, Type B, and Type C.
• Fiber Count:
  • Available in 8, 12, and 24 cores for 40G/100G applications.
  • New 16-fiber cables designed for 400G short-reach cabling in hyperscale data centers.
• Fiber Mode:
  • Multimode OM3/OM4/OM5: Best for short-distance transmission (300m/400m/440m).
  • Single-Mode OS2: Perfect for long-distance applications like Metropolitan Area Networks (MANs) and Passive Optical Networks (PONs).
• Jacket Rating:
  • Choose from LSZH (Low Smoke Zero Halogen), OFNP (Optical Fiber Nonconductive, Plenum), and CMP (Communications Multipurpose Cable, Plenum) to meet your fire safety requirements.

KanesBridge MTP®/MPO Patch Cable Options:

• MPO/MTP® Optical Patch Cable
• MPO to LC Optical Patch Cable
• MTP® Pro 8-144 Fibers MTP-12 OM4 MM Elite Trunk Cable
• 144 Fibers High-Density MPO-LC Breakout Cassette

Upgrade your network infrastructure with KanesBridge MTP®/MPO Patch Cables. Use the below to customize and order your cables today to achieve optimal network performance and scalability.

Use the information below to customise and order KanesBridge MTP®/MPO Patch cables
