Fiber Patch Cables
At KanesBridge, we categorize our optical patch cables based on their connector types:
- Fiber Patch Cables: Equipped with connectors such as FC, LC, SC, and ST, these cables are designed for rapid and reliable connections in various telecommunications and data center applications.
- MPO/MTP® Patch Cables: Featuring MPO/MTP® connectors, these cables are perfect for high-density networks and are optimized for seamless integration with modern data center and telecommunications infrastructure.
KanesBridge Fiber Patch Cable options:

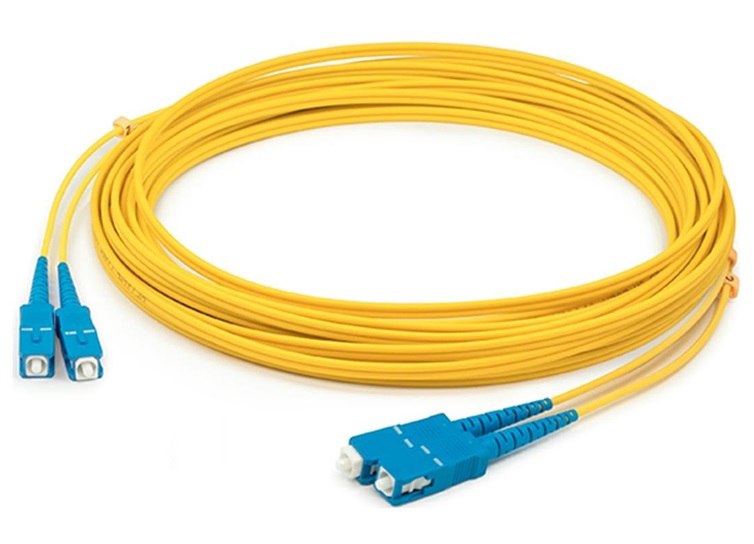

- Standard Optical Patch Cable
- SN UPC to LC UPC SM DX Optical Patch Cable
- 12 Fibers MM LC UPC to LC UPC Trunk Cable
- VF/45-LC/UPC MM 50/125 2.0mm LSZH 3M Patch Cable
- MDC to LC UPC SM DX Optical Patch Cable
- E2000 APC to E2000 UPC SX MM Patch Cable
- E2000 APC to FC APC SX MM
- LC UPC to LC UPC MM Uniboot Optical Patch Cable
- Singlemode Fiber Optic Pigt ail
Use the information below to customise and order KanesBridge Fiber Patch cables.
KanesBridge Fiber Patch Cables
| Connector/Polishing | Cable Type | Fiber Type | Cable Jacket | Fiber Diameter | Cable Length |
| 0=None 1=FC/APC 2=FC/UPC 3=SC/APC 4=SC/UPC 5=LC/APC 6=LC/UPC 7=ST S=Specify | 1=Simplex 2=Duplex 3=Armoured 4=Water-proof 5=Break-out 6=Ribbon 7=Bundle | 1=SM 9/125 G652D 2=SM 9/125 G657A 3=MM 62.5/125 OM1 4=MM 50/125 OM2 5=MM 50/125 OM3 6=MM 50/125 OM4 7=MM 50/125 OM5 | 1=PVC 2=LSZH 3=OFNR | 0=250um 1=900um 2=2.0mm 3=3.0mm S=Specify | 0=0.5m 1=1m 2=1.5m 3=2m 4=3m 5=4m S=Specify |
