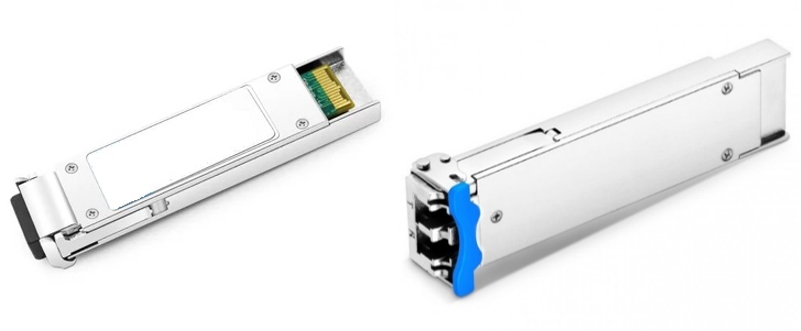

10G XFP
The XFP (10 Gigabit Small Form Factor Pluggable) is a high-speed transceiver module standard for optical fiber network and telecommunication links. XFP modules comply with IEEE802.3ae and XFP MSA standards and offer versatility and reliability for various applications.
Key Features:
- Hot-Swappable: Easily replaceable without network disruption.
- Protocol-Independent: Compatible with multiple protocols.
- Wavelength Options: Operate at near-infrared wavelengths of 850nm, 1310nm, or 1550nm.
- DWDM Capabilities: Supports dense wavelength-division multiplexing for high-density data transmission.
Applications:
- SONET OC-192
- SDH STM-64
- 10 Gbit/s Optical Transport Network (OTN) OTU-2
- Parallel Optics Links
Technology Comparison:
XFP technology is considered older compared to the newer 10G SFP+ optics. SFP+ modules have a smaller footprint, allowing for greater port density. This is because SFP+ transceivers offload more circuitry to the motherboard, including functions like signal modulation, MAC, CDR, and EDC, making them more space-efficient.
KanesBridge offers a range of XFP optical modules to meet diverse networking requirements, including:
- XFP SR (Short Range)
- XFP LR (Long Range)
- XFP ER (Extended Range)
- XFP ZR (Zoned Range)
- XFP ZR+ (Extended Zoned Range)
- XFP CWDM
- XFP DWDM
KanesBridge 10G XFP Optical Modules
| Product Model | Type | Data Rate | Wavelength | Reach | Media Type | Sensitivity | Interface | Temperature |
| KBXFP-10GSRMC | SR | 10Gb/s | 850nm | 300M | MMF | VSCEL | LC | C-Temp, I-Temp |
| KBXFP-10G10C | LR | 10Gb/s | 1310nm | 10KM | SMF, Duplex | DFB | LC | C-Temp, I-Temp |
| KBXFP-10G20C | LR | 10Gb/s | 1310nm | 20KM | SMF, Duplex | DFB | LC | C-Temp, I-Temp |
| KBXFP-10G40C | ER | 10Gb/s | 1310nm | 40KM | SMF, Duplex | DFB | LC | C-Temp, I-Temp |
| KBXFP-10G40C | ER | 10Gb/s | 1550nm | 40KM | SMF, Duplex | EML | LC | C-Temp, I-Temp |
| KBXFP-10G80C | ZR | 10Gb/s | 1550nm | 80KM | SMF, Duplex | EML | LC | C-Temp, I-Temp |
| KBXFP-10G120C | ZR+ | 10Gb/s | 1550nm | 120KM | SMF, Duplex | EML | LC | C-Temp, I-Temp |
| KBXFP-10GCWDM10I2761 | CWDM | 10Gb/s | 1270-1610nm | 10KM | SMF, Duplex | DFB | LC | I-Temp |
| KBXFP-10GCWDM40I2761 | CWDM | 10Gb/s | 1270-1610nm | 40KM | SMF, Duplex | EML | LC | I-Temp |
| KBXFP-10GCWDM80I4761 | CWDM | 10Gb/s | 1270-1610nm | 80KM | SMF, Duplex | EML | LC | I-Temp |
| KBXFP-10GDWDM40I | DWDM | 10Gb/s | CH18-CH61 | 40KM | SMF, Duplex | EML | LC | I-Temp |
| KBXFP-10GDWDM80I | DWDM | 10Gb/s | CH18-CH61 | 80KM | SMF, Duplex | EML | LC | I-Temp |
