Optical Modules (Product Brochure)
Optical modules, or optical transceivers, are hot-pluggable devices essential for high-bandwidth data communication. They feature:
- Dual Interfaces: Connects internally via an electrical interface and externally through a fiber optic cable.
- Critical Role: Acts as the key link between switches, routers, and cables, ensuring seamless network communication.

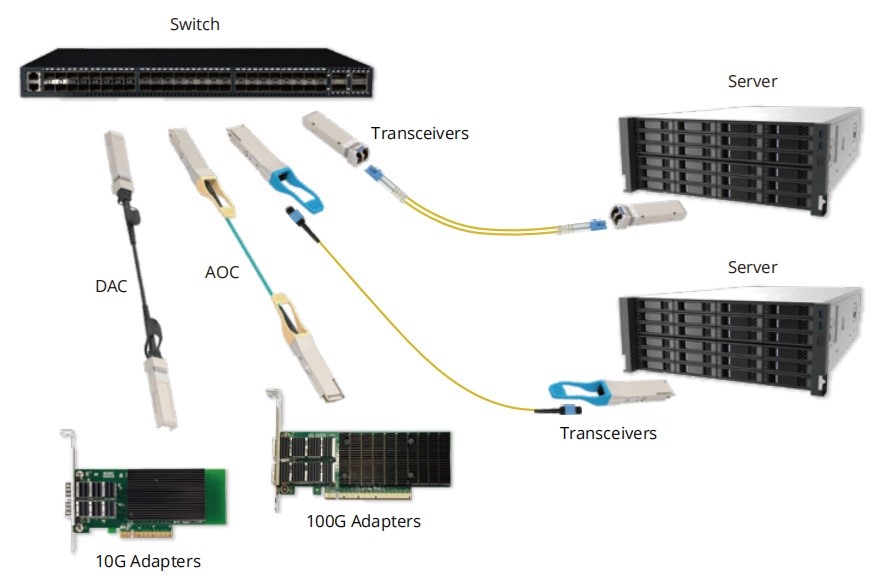

Optical modules are critical for high-speed data transmission across various sectors:
- Data Centers: Enable rapid data transfer between servers, switches, and storage devices, supporting the demands of cloud computing and modern storage systems.
- Telecommunications Networks: Provide high-speed, long-distance data transmission for voice, video, and data services in optical networking equipment like routers and switches.
- Fiber to the Home (FTTH): Deliver high-speed internet, digital TV, and voice services directly to homes and businesses, ensuring robust data transmission over optical fibers.
- Wireless Infrastructure: Facilitate data transfer in wireless networks, connecting remote radio heads and distributed antenna systems to baseband units for high-capacity, low-latency communication.
- Enterprise Networks: Connect switches, routers, and servers within and across office locations, offering high-speed, low-latency performance for LANs and WANs.
- Internet Service Providers (ISPs): Support backbone networks to provide reliable, high-speed internet services to customers, enhancing connectivity between network nodes.
- Video Surveillance: Transmit high-definition video streams over long distances, supporting IP cameras in both indoor and outdoor security systems.
- Military and Aerospace: Ensure secure, high-speed data communication in challenging environments, used in aircraft, satellites, and military vehicles for surveillance and command/control.
At KanesBridge Technology, we offer a comprehensive range of MSA-compliant optical modules used in data center networks, data center interconnect (DCI), AI/HPC/Cloud computing, telecom wireless networks, optical transmission & metro networks, enterprise IP networks, broadcasting networks, and fixed access networks (PONs and FTTx). These optical modules include:
- Copper RJ45 SFP: 100BASE, 1000BASE, 10/100/1000BASE, 10GBASE SFP+
- 1G SFP: Standard, Bi-Directional (BiDi), CWDM, DWDM
- 10G SFP+: Standard, Bi-Directional (BiDi), CWDM, DWDM
- 10G XFP: Standard, CWDM, DWDM
- 25G SFP28: Standard, Bi-Directional (BiDi), CWDM, DWDM
- 40G QSFP+: Standard
- 100G QSFP28: Standard, Bi-Directional (BiDi), PAM4, CWDM4
- 200G QSFP56/QSFP-DD: Standard, CFP2-DCO
- 400G QSFP-DD: Standard, CFP2-DCO, QSFPDD-DCO
- 800G QSFP-DD/OSFP: Standard
- PON: OLT (GPON, XGS-PON, XGS-PON&GPON, XG-PON), ONU (GPON, XG-PON)
- Direct Attached Cable (DAC): 10G SFP+ DAC, 25G SFP28 DAC, 40G QSFP+ DAC, 100G QSFP28 DAC
- Active Optical Cable (AOC): 10G SFP+ AOC, 25G SFP28 AOC. 40G QSFP+ AOC, 100G QSFP28 AOC, 200G QSFP56 AOC, 400G QSFP-DD AOC
Copper SFP
KanesBridge offers four types of copper SFP modules: 100Base Copper SFP, 1000Base Copper SFP, 10/100/1000 Copper SFP, and 10G Copper SFP+.
1G SFP
KanesBridge 1G SFP modules include 1.25G SR, FR (2km), LR (10km, 20km), ER (40km), ZR (80km), ZR+ (120km), and BIDI (3, 10, 20, 40, 60, 80, 120km).
10G SFP+
KanesBridge offers these types of SFP+ modules: 10G SR, LR (10km, 20km), ER (40km), ZR (80km), BIDI (10, 20, 40, 80km), and CWDM/DWDM (10, 20, 40, 80km).
10G XFP
KanesBridge offers these types of XFP optical moduels: XFP SR, LR (10, 20km), ER (40km), ZR (80km), ZR+ (120km), and CWDM/DWDM (10, 40, 80km).
25G SFP28
KanesBridge offers these types of SFP28 optical modules: 25G SR, LR (10km), ER (40km), BIDI (10, 40km), and CWDM/DWDM (10, 40km).
40G QSFP+
KanesBridge offers these types of QSFP+ optical modules: 40G SR4, LR4 (10, 20km), ER4 (40km), and ZR4 (80km).
100G QSFP28
KanesBridge offers these types of QSFP28 optical modules: 100G SR4, LR1 (single lambda, 10km), LR4 (10, 20km), ER4 (30, 40km), ZR4 (80km), BIDI (100m, 10, 20, 30, 40km), PSM4 (10km), and CWDM4 (2, 10km).
200G QSFP56/QSFP-DD
KanesBridge offers these types of 200G optical modules: 200G QSFP56 SR4 (100m), LR4 (10km), and 200G QSFP-DD SR4 (100m).
400G QSFP-DD
KanesBridge offers these types of 400G optical modules: 400G QSFP-DD SR8, FR4 (2km), DR4 (500m), DR4+ (2km), DR4++ (10km), LR8 (10km), LR4 (10km), LR4 CWDM4 (10km), and ER4 (30km).
800G QSFP-DD/OSFP
KanesBridge offers these types of 800G optical modules: 800G QSFP-DD SR8 (50m), and 800G OSFP SR8 50m).
PON Optical Modules
KaneBridge offers these types of PON optical modules: GPON OLT (Class B+, C+, D), XGS-PON&GPON OLT (Class C+, D), XGS-PON OLT (E1, E2, N1, N2), XG-PON&GPON OLT (Class C+, D), GPON ONU Class B+, and XGPON ONU Class B.
Direct Attached Cable (DAC)
KanesBridge offers these types of DAC cables: 10G SFP+ (passive), 10G SFP+ (active), 25G SFP28 DAC (passive), 40G QSFP+ (passive), 40G QSFP+ to 4 x 10G SFP+, 100G QSFP28 (passive), and 100G QSFP28 to 4 x 25G SFP28 DAC.
Active Optical Cable (AOC)
KanesBridge offers these types of AOC cables: 10G SFP+, 25G SFP28, 40G QSFP+, 40G QSFP+ to 4x10G SFP+, 100G QSFP28, 100G QSFP28 to 4 x 25G SFP28, 200G QSFP56, 400G QSFP-DD, 400G QSFP-DD to 2x200G QSFP56, and 400G QSFP-DD to 4x50G QSFP56.
