OTNS8600 Platforms

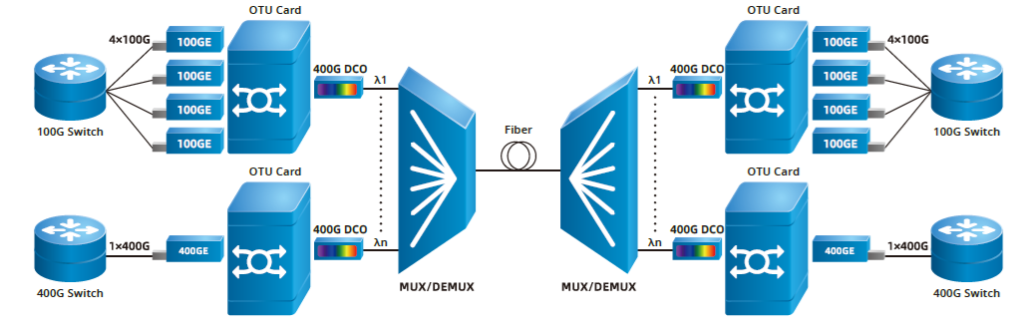

KanesBridge OTNS8600: This cutting-edge WDM transmission platform is engineered for Data Center Interconnect (DCI) applications, boasting high integration and extensive bandwidth. It facilitates easy deployment without complex tuning, and supports straightforward operation and maintenance through NETCONF/YANG. The OTN8600 addresses the surging bandwidth demands between data centers, supports flexible equipment deployment, and promotes an open optical network architecture, setting a new standard in high-speed, all-optical interconnections.
OTNS8600 Models:
Please refere to the section below, OTNS8600-DCI8 and OTNS8600-DCI4 for more specifications.

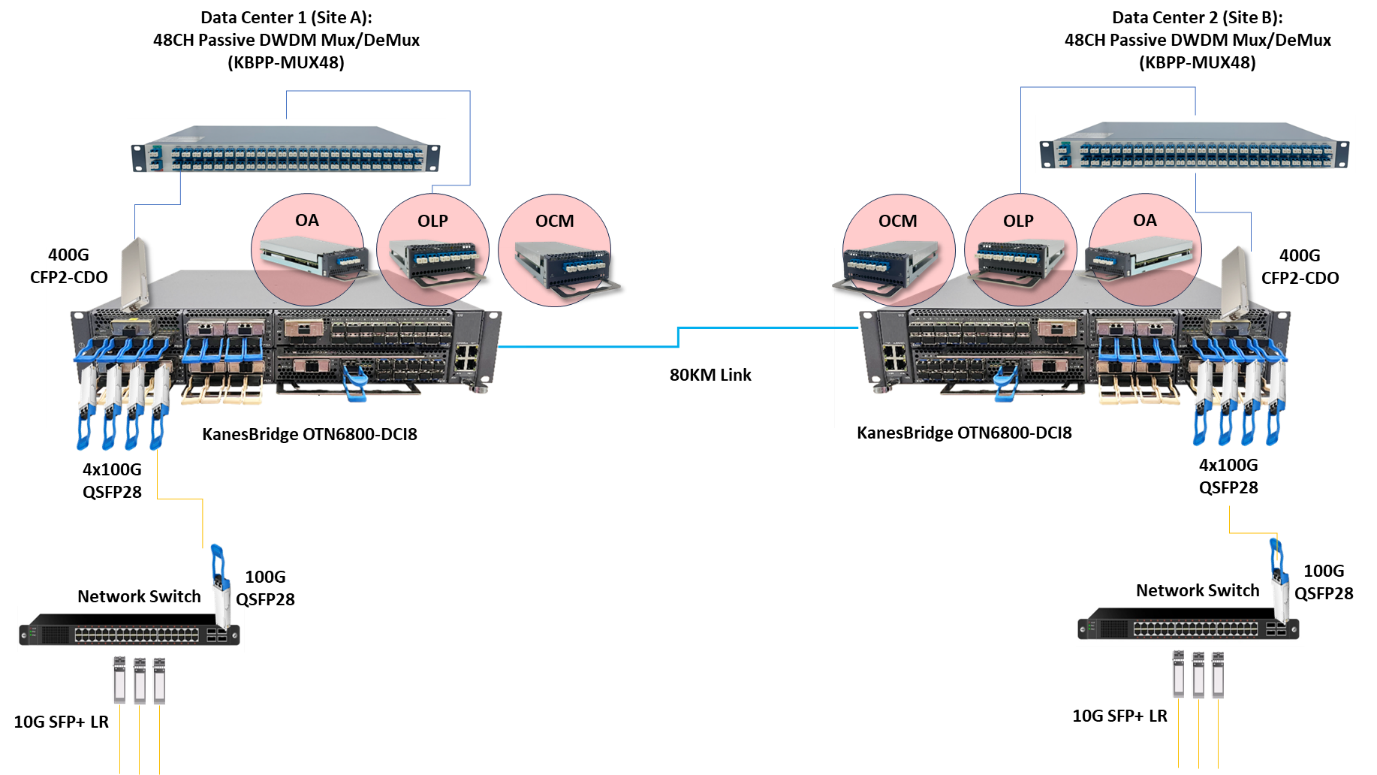

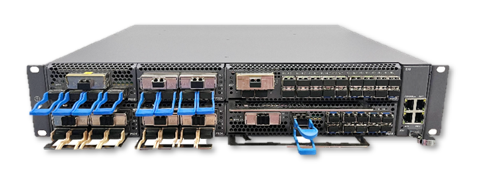

KanesBridge OTNS8600-DCI8 Platform
Key Features of OTNS8600-DCI8:
- Modular Design: Features a fully optoelectronic integrated, pluggable design. Components are hot-swappable, allowing for on-demand deployment and expansion.
- Compact Enclosure: Fits a 19” rackmount (2U) and is suitable for data centers, compatible with standard IT equipment cabinets.
- Massive Capacity: Delivers up to 3.2 Tb/s per system, with single-channel capacities reaching 400G, and scalable to 600G, 800G, and 1.2T.
- Versatile Optical Service Cards: Integrates optical layer cards with OA, WSS, VOA, OSC, OTDR, OCM, OLP, and more, simplifying internal fiber connectivity.
- Diverse Client Services: Supports a range of services, including 10GE, 100GE, 100GE FlexE (Unaware), 400GE, STM-64, 10GE WAN, OTU2, OTU4, etc.
- Advanced ROADM and FlexGrid: 9-degree ROADM networking ensures flexibility and efficiency.
- Comprehensive Monitoring: Offers performance monitoring at service, OTN, and optical layers, with NETCONF/YANG interfaces and a user-friendly GUI management platform.
- Robust Protection: Multi-layer protection at the network and device levels with a protection reversal delay of less than 50ms, guaranteeing superior performance.
| Parameters | Description |
| Applications | DCI, Metro, and Long-Haul Transmission |
| Network Topology | Point to Point, Ring, Mesh |
| Chassis | Dimensions (H x W x D): 88 mm (H)×446 mm (W)×450 mm (D) Maximum Capacity: 3.2Tbit/s Number of Service Card Slots: 8 Enclosure Type: 19″ Rack mount, 2U |
| Line-Side Port | Data Rate: 100G (PDM_QPSK) programmable 200G (PDM_QPSK) programmable 200G (PDM_8QAM) programmable 200G (PDM_16QAM) programmable 400G (PDM_16QAM) programmable Pluggable QSFP28 / QSFP-DD or CFP2, wavelength adjustable |
| Client Side Port | Service Type: 10GE, 100GE, 100GE FlexE (Unware), 400GE, OTU2, OTU4, STM-64 and 10GE WAN Optical Module: Pluggable SFP+, QSFP28 |
| Max. Number of Wavelengths | Fixed grid: 96 wavelengths @50 GHz |
| Channel Spacing | Fixed grid: 50 GHz / 75 GHz / 100 GHz / 150 GHz |
| Central Frequency Range | 191.35 THz ~ 196.1 THz |
| Central Wavelength Range | 1528.77 nm ~ 1566.73 nm |
| Protection Function | Optical line protection (OLP) Optical multiplexed segment protection (OMSP) Optical channel protection (OCHP) SNCP protection (only P422 muxponder supported) |
| Network Management | Supports main controller 1+1 backup (optional) Support CLI, Web LCT, NETCONF, GUI management platform based on B/S architecture Support DCN communication based on OSC |
| Power Supply | Backup: Standard CRPS power supply 1+1 backup AC: 100 V AC～130 V AC (50/60Hz) or 200 V AC～240 V AC (50/60Hz); Max. voltage range: 90 V AC～264 V AC (45Hz~65Hz) HVDC: Rated voltage range: 240 V HVDC; Max. voltage range: 192 V HVDC～288 V HVDC DC: Rated voltage range: -48 V DC/-60 V DC; Max. voltage range: -40 V DC～-72 V DC |
| Heat Dissipation | Front inlet air and rear outlet air 2+1 Fan unit backup |
| Typical Power Consumption | <800W (Electric layer full match) |
| Environment | Operating Temperature: Short-term: -5℃～+45℃; Long-term: 0℃～40℃ Storage Temperature: -40℃～+70℃ Humidity: 5%～95% (no condensation) |

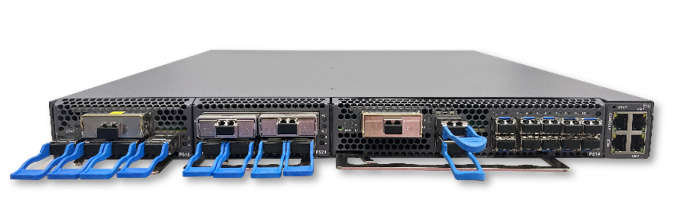

KanesBridge OTNS8600-DCI4 Platform
The KanesBridge OTNS8600-DCI4 is a compact powerhouse, housed in a 19” rackmount, 1U enclosure with four optical service card slots. It delivers exceptional performance and flexibility for your network needs.
Key Features
- Modular Design: Fully optoelectronic integrated and pluggable. Components are hot-swappable, allowing on-demand deployment and expansion.
- Compact 1U Enclosure: Designed to fit a 19” rackmount with an 800mm depth, making it ideal for data centers and compatible with standard IT equipment cabinets.
- High Transmission Capacity: Supports up to 1.6 Tb/s per system, with single-channel capacities up to 400G, scalable to 600G, 800G, and 1.2T.
- Versatile Optical Service Cards: Integrated with optical layer cards featuring OA, WSS, VOA, OSC, OTDR, OCM, OLP, and more, simplifying internal fiber connectivity.
- Extensive Client Service Support: Compatible with 10GE, 100GE, 100GE FlexE (Unaware), 400GE, STM-64, 10GE WAN, OTU2, OTU4, and other service types.
- Advanced ROADM and FlexGrid: 9-degree ROADM networking for enhanced flexibility and efficiency.
- Comprehensive Monitoring and Management: Provides performance monitoring at service, OTN, and optical layers, supporting NETCONF/YANG interfaces and a user-friendly GUI management platform.
- Robust Protection: Features multi-layer network-level and device-level protection with a protection reversal delay of less than 50ms, ensuring superior performance.
| Parameters | Description |
| Applications | DCI, Metro, and Long-Haul Transmission |
| Network Topology | Point to Point, Ring, Mesh |
| Chassis | Dimensions (H x W x D): 44 mm (H)×444 mm (W)×490 mm (D) Maximum Capacity: 1.6Tbit/s Number of Service Card Slots: 4 Enclosure Type: 19″ Rack mount, 1U |
| Line-Side Port | Data Rate: 100G (PDM_QPSK) programmable 200G (PDM_QPSK) programmable 200G (PDM_8QAM) programmable 200G (PDM_16QAM) programmable 400G (PDM_16QAM) programmable Pluggable QSFP28 / QSFP-DD or CFP2, wavelength adjustable |
| Client Side Port | Service Type: 10GE, 100GE, 100GE FlexE (Unware), 400GE, OTU2, OTU4, STM-64 and 10GE WAN Optical Module: Pluggable SFP+, QSFP28 |
| Max. Number of Wavelengths | Fixed grid: 96 wavelengths @50 GHz |
| Channel Spacing | Fixed grid: 50 GHz / 75 GHz / 100 GHz / 150 GHz |
| Central Frequency Range | 191.35 THz ~ 196.1 THz |
| Central Wavelength Range | 1528.77 nm ~ 1566.73 nm |
| Protection Function | Optical line protection (OLP) Optical multiplexed segment protection (OMSP) Optical channel protection (OCHP) SNCP protection (only P422 muxponder supported) |
| Network Management | Support 1 main controller Support CLI, Web LCT, NETCONF, GUI management platform based on B/S architecture Support DCN communication based on OSC |
| Power Supply | Backup: Standard CRPS power supply 1+1 backup AC: Rated voltage range: 100 V AC～130 V AC (50/60Hz) or 200 V AC～240 V AC (50/60Hz); Max. voltage range: 90 V AC～264 V AC (45Hz~65Hz) HVDC: Rated voltage range: 240 V HVDC; Max. voltage range: 192 V HVDC～288 V HVDC DC: Rated voltage range: -48 V DC/-60 V DC; Max. voltage range: -40 V DC～-72 V DC |
| Heat Dissipation | Forward wind, rear air and FRU Fan 1+1 Fan unit backup |
| Typical Power Consumption | <550W (Electric layer full match) |
| Environment | Operating Temperature: Short-term: -5℃～+45℃; Long-term: 0℃～40℃ Storage Temperature: -40℃～+70℃ Humidity: 5%～95% (no condensation) |
