DCI-BOX Platforms
The KanesBridge DCI-BOX is a high-speed, stackable WDM transmission platform designed for metro, long-haul, and high-capacity DCI networks. Compact yet powerful, it offers flexible solutions for enterprise, campus, and cloud networks with low power consumption and easy maintenance.
Models:
Please refer to the section below, 6.4T DCI-BOX, 1.6T DCI-BOX, and 800G DCI-BOX for specifications.

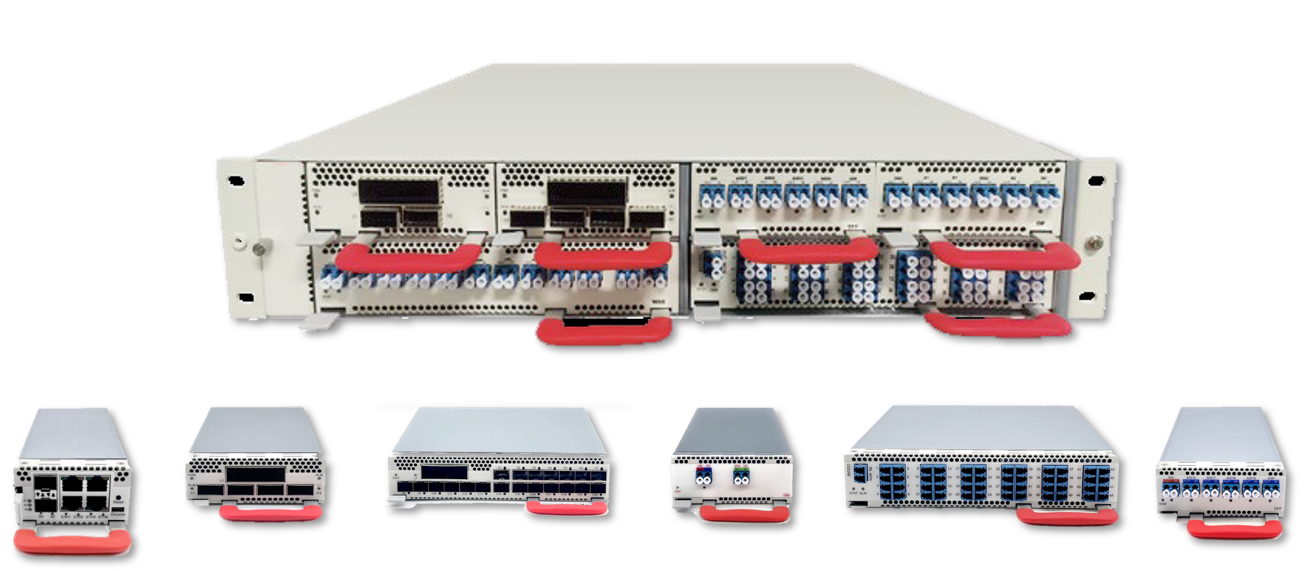

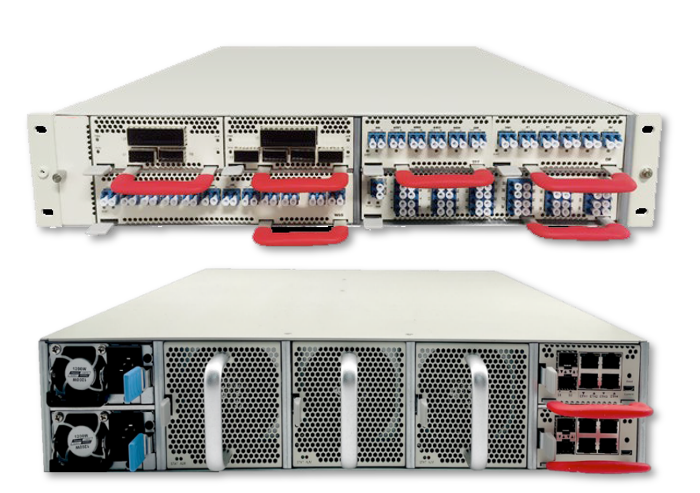

KanesBridge 6.4T DCI-BOX Platform
The KanesBridge 6.4T DCI-BOX is a 2U chassis offering high-performance connectivity with support for 200G/400G service cards and a comprehensive range of optical layers including WSS, EDFA, OMU/ODU, VMUX, OLP, OTDR, OCM, and TFF. Featuring an open software architecture and versatile interfaces, it integrates seamlessly with data center management systems for streamlined maintenance and rapid service expansion. The front panel supports fiber connections and single-card hot swapping for easy upkeep, while the rear accommodates power supply and fan access. It supports DC-48V/AC 220V power with 1+1 redundancy for the main control card, power supply, and fans.
Key Features:
- High Capacity: Delivers up to 6.4 Tb/s per system with single-wave capacities up to 400G, evolving to 600G, 800G, and 1.2T.
- Modular Design: Features a fully modular, optoelectronic design with pluggable components. Supports multi-chassis expansion and smooth upgrades from 48 to 96 channels.
- Compact 2U Chassis: Fits into a 19” rackmount with a 2U height, ideal for data centers and compatible with standard IT equipment cabinets.
- Flexible Service Cards: Equipped with pluggable optical service cards integrating WSS, EDFA, OMU/ODU, VMUX, OLP, OTDR, and OCM for simplified fiber connectivity.
- Broad Client Support: Supports a wide range of services including 10GE, 100GE, 400GE, STM-64, 10GE WAN, OTU2, OTU4, and more.
- Advanced Networking: 9-degree ROADM networking for flexible and efficient optical routing.
- Easy Operation: Designed with SDN principles and open APIs for seamless service automation and integration. Rapid deployment and management through unified network management platforms, SNMP, Web, NMS, and Netconf/YANG.
- Reliable Power and Maintenance: Standard server power supply options (DC-48V/AC 220V/high-voltage DC), with 1+1 protection for the main control card, power supply, and fans. Front panel supports single card hot swapping for quick maintenance.
| Parameters | Description |
| Applications | DCI, Metro, and Long-Haul Transmission |
| Network Topology | Point to Point, Ring, Mesh |
| Chassis | Dimensions (H x W x D): 90 mm (H)×440 mm (W)×420 mm (D) Maximum Capacity: 6.4Tbit/s Number of Service Card Slots: 8 Enclosure Type: 19″ Rack mount, 2U |
| Line-Side Port | Data Rate: 100G (PDM_QPSK) programmable 200G (PDM_QPSK) programmable 200G (PDM_16QAM) programmable 400G (PDM_16QAM) programmable Optical Module: Pluggable CFP2-DCO or QSFPDD-DCO, wavelength adjustable |
| Client Side Port | Service Type: 400GE/100GE/OTU4 or 10GE/OC-192/STM-64/8GFC/10GFC/16GFC Optical Module: Pluggable SFP+, QSFP28, QSFP-DD |
| Max. Number of Wavelengths | Fixed grid: 96 wavelengths @50 GHz |
| Channel Spacing | Fixed grid: 50 GHz / 75 GHz / 100 GHz / 150 GHz |
| Central Frequency Range | 191.30THz to 196.05THz |
| Central Wavelength Range | 1529.16nm to 1567.14nm |
| Protection Function | Optical line protection (OLP) Optical channel protection (OCHP) |
| Network Management | Optical channel protection (OCHP) Supports main controller 1+1 backup (optional) Support CLI, SNMP, Web, NMS (graphical interface), and Netconf/YANG model interface Support DCN communication based on OSC |
| Power Supply | Backup: Standard CRPS power supply 1+1 backup AC: Max. voltage range: 90 V AC～264 V AC (50Hz~60Hz) HVDC: Rated voltage range: 240 V HVDC; Max. voltage range: 192 V HVDC～288 V HVDC DC: Max. voltage range: 36 V DC～60 V DC |
| Heat Dissipation | Forward wind, rear air and FRU Fan 1+1 Fan unit backup |
| Typical Power Consumption | <800W (Electric layer full match) |
| Environment | Operating Temperature: -10℃～+45℃ Storage Temperature: -40℃～+70℃ Humidity: 10%～95% (no condensation) |

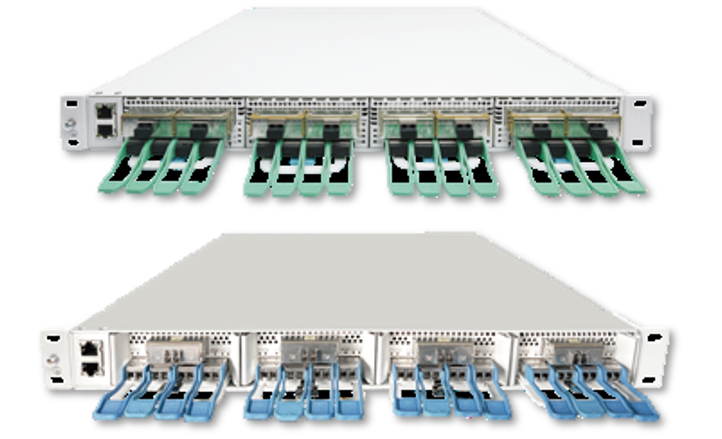

KanesBridge 1.6T DCI-BOX Platform
The KanesBridge 1.6T DCI-BOX is a high-speed WDM transmission platform designed for data center interconnection. It delivers exceptional capacity and performance for business access and long-distance transmission, with streamlined operation and maintenance.
Key Features:
- Ultra-High Capacity: Delivers up to 1.6 Tb/s per system with single-wave capacities up to 400G.
- Compact and Modular: Features a 1U 19” rackmount design with a modular, optoelectronic architecture. Easily configure and upgrade as needed.
- Service Flexibility: Supports four service card slots and transparent transmission of 400G OTU. Converts two 100GE signals into one 200G DWDM signal.
- Comprehensive Service Support: Compatible with a wide range of services, including 10GE, 100GE, 400GE, STM-64, 10GE WAN, OTU2, and OTU4.
- User-Friendly Operation: Simplifies deployment with SDN-based design and open APIs for service automation and integration with any IT environment.
- Efficient Management: Offers unified performance monitoring and management through SNMP, Web, NMS, and Netconf/YANG interfaces.
| Parameters | Description |
| Applications | DCI, Metro, and Long-Haul Transmission |
| Network Topology | Point to Point, Ring |
| Chassis | Dimensions (H x W x D): 44 mm (H)×440 mm (W)×535 mm (D) Maximum Capacity: 1.6Tbit/s Number of Service Card Slots: 4 Enclosure Type: 19″ Rack mount, 1U |
| Line-Side Port | Data Rate: 100G (PDM_QPSK) programmable 200G (PDM_QPSK) programmable 200G (PDM_16QAM) programmable 400G (PDM_16QAM) programmable Optical Module: Pluggable CFP2-DCO, wavelength adjustable |
| Client Side Port | Service Type: 100GE/OTU4 Optical Module: QSFP28, |
| Max. Number of Wavelengths | Fixed grid: 96 wavelengths @50 GHz |
| Channel Spacing | Fixed grid: 50 GHz / 75 GHz / 100 GHz / 150 GHz |
| Central Frequency Range | 191.30THz to 196.05THz |
| Central Wavelength Range | 1529.16nm to 1567.14nm |
| Protection Function | Optical line protection (OLP) Optical channel protection (OCHP) |
| Network Management | Support CLI, SNMP, Web, NMS (graphical interface), and Netconf/YANG model interface |
| Power Supply | Backup: Standard CRPS power supply 1+1 backup AC: Max. voltage range: 90 V AC～264 V AC (50Hz~60Hz) DC: Max. voltage range: 36 V DC～60 V DC |
| Heat Dissipation | Forward wind, rear air and FRU Fan 1+1 Fan unit backup |
| Typical Power Consumption | ≤ 350W (Electric layer full match) |
| Environment | Operating Temperature: -10℃～+70℃ Storage Temperature: -40℃～+80℃ Humidity: 10%～95% (no condensation) |

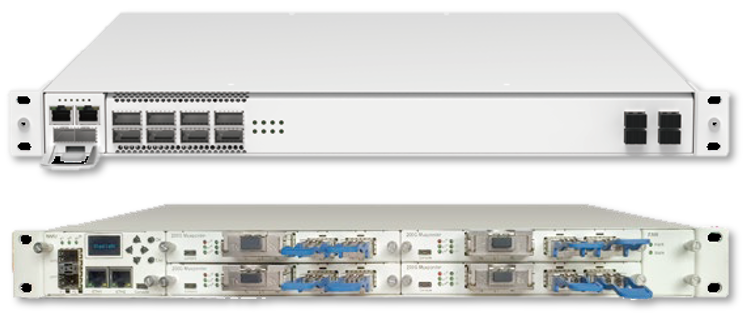

KanesBridge 800G DCI-BOX Platform
The KanesBridge 800G DCI-BOX is a versatile WDM transmission platform optimized for small to medium capacity service access and long-distance transmission. Ideal for data center interconnection (DCI), it caters to internet companies, data center operators, enterprises, and cloud service providers.
Key Features:
- High-Speed Capacity: Provides up to 800 Gbps per system, with single-wave support up to 200G.
- Modular Flexibility: Features a pluggable, optoelectronic modular design for easy configuration and upgrades.
- Compact 1U Design: Fits into a 19” rackmount, suitable for data centers and common IT equipment cabinets.
- Broad Service Support: Handles various services including 10GE, 100GE, STM-64, 10GE WAN, OTU2, and OTU4.
- Effortless Operation: Incorporates SDN design with open APIs for seamless automation and integration, enabling rapid service deployment.
- Unified Management: Offers comprehensive monitoring and management through SNMP, Web, NMS, and Netconf/YANG interfaces.
| Parameters | Description |
| Applications | DCI, Metro Transmission |
| Network Topology | Point to Point, Ring |
| Chassis | Dimensions (H x W x D): 44.5 mm (H)×482.6 mm (W)×300 mm (D) Maximum Capacity: 800Gbit/s Number of Service Card Slots: 4 Enclosure Type: 19″ Rack mount, 1U |
| Line-Side Port | Data Rate: 100G (PDM_QPSK) programmable 200G (PDM_16QAM) programmable Optical Module: Pluggable CFP2-DCO or QSFPDD-DCO, wavelength adjustable |
| Client Side Port | Service Type: 100GE/OTU4 Optical Module: Pluggable QSFP28 |
| Max. Number of Wavelengths | Fixed grid: 96 wavelengths @50 GHz |
| Channel Spacing | Fixed grid: 50 GHz / 100 GHz |
| Central Frequency Range | 191.30THz to 196.05THz |
| Central Wavelength Range | 1529.16nm to 1567.14nm |
| Protection Function | Optical line protection (OLP) Optical channel protection (OCHP) |
| Network Management | Support CLI, SNMP, Web, NMS (graphical interface), and Netconf/YANG model interface |
| Power Supply | Backup: Standard CRPS power supply 1+1 backup AC: Max. voltage range: 90 V AC～264 V AC (50Hz~60Hz) DC: Max. voltage range: 36 V DC～60 V DC |
| Heat Dissipation | Forward wind, rear air and FRU Fan |
| Typical Power Consumption | ≤ 150W (Electric layer full match) |
| Environment | Operating Temperature: -10℃～+60℃ Storage Temperature: -40℃～+75℃ Humidity: 10%～95% (no condensation) |
