KanesBridge ODF-1008-TM
Fiber Distribution Terminals
Fiber distribution terminal is used in FTTH networks to connect feeder cables and distribution cables. These devices can be used to fixe and protect optical cables, terminate and splice fibers, distribute and dispatch fibers, and protect other parts. KanesBridge offers these fiber distribution terminals, Optical Distribution Frame (ODF), Optical Distribution Unit (ODU), Fiber Distribution Cabinet (FDC), Fiber Distribution Box (FDB), and Pre-connection Distribution Box (QuickConnect).
Fiber Distribution Frame (ODF)
An optical distribution frame (ODF) is a frame used to provide cable interconnections between communication facilities, which can integrate fiber splicing, fiber termination, fiber optic adapters/connectors and cable connections together in a single unit. It can also work as a protective device to protect fiber optic connections from damage.
KanesBridge Optical Distribution Frame (ODF-1008-TM) is an advanced Optical Distribution Frame designed for Central Office (CO) and telecommunication rooms in multi-dwelling and multi-tenant buildings. With a 1008-fiber termination capacity, it seamlessly integrates fiber splicing, termination, adapters, and connections, while providing robust protection for your fiber optic network.ange from 5m to 200m (-0%/+5%), with customizable options available to meet your specific needs.
Key Features:

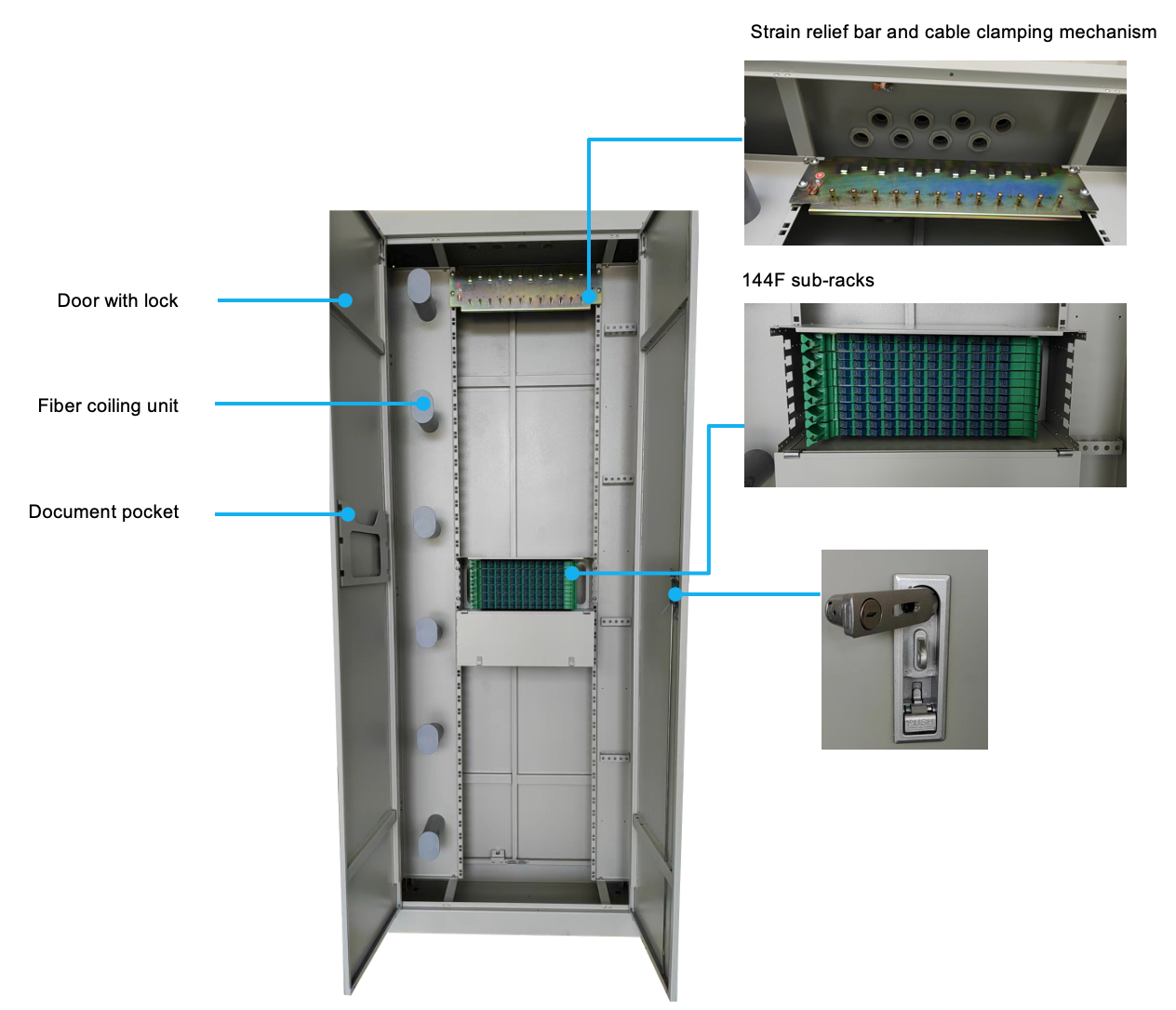

- Standard 19” rack system: Dimensions 900mm (W) x 300mm (D) x 2200mm (H)
- Front access termination for easy maintenance
- Modular design: Supports up to 1,008 SC fiber ports with 7x144F sub-racks and optional splitter shelf
- Pull-out trays: 12/24F per tray for streamlined operation
- Secure enclosure: Lockable front door and detachable back panel
- Comprehensive cable management: Handles 1,008 patch cords with 30mm bending radius guides
- Flexible cable ports: Accommodates incoming cables up to 21mm and 2mm patch cords
KanesBridge ODU-CL Series
Optical Distribution Unit (ODU)

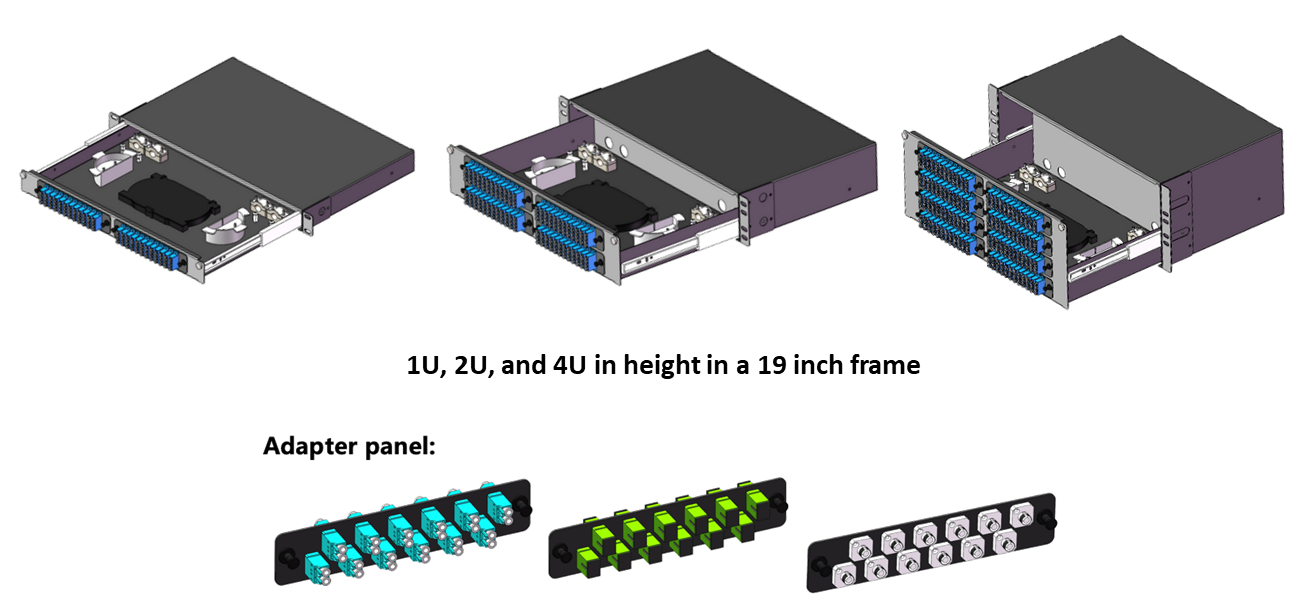

KanesBridge ODU-CL series offers versatile fiber distribution units designed for seamless integration in 19-inch racks, available in 1U, 2U, and 4U configurations. Featuring a convenient “drawer” design, these sub-racks enable efficient fiber splicing, connection, protection, and management for applications like FTTH, data centers, and telecom rooms.
Key Features:
- Compact options: Available in 1U, 2U, and 4U heights
- Drawer-style design: Easy access for management and maintenance
- Detachable patch panels: Simplifies replacements and future expansion
- Supports 24F and 48F splice trays
- Cable entrance: Accommodates cables up to ∅25mm
- Durable enclosure: Cold-rolled or galvanized steel, finished with anti-static epoxy in RAL9004 black or RAL7035 grey white
- Temperature range: Operating from -10℃ to 45℃; storage from -40℃ to 70℃
- Humidity resistance: Up to 85% at +30℃
KanesBridge FDC-576-TM
KanesBridge HiDen Type 288/576F
Fiber Distribution Cabinet (FDC)

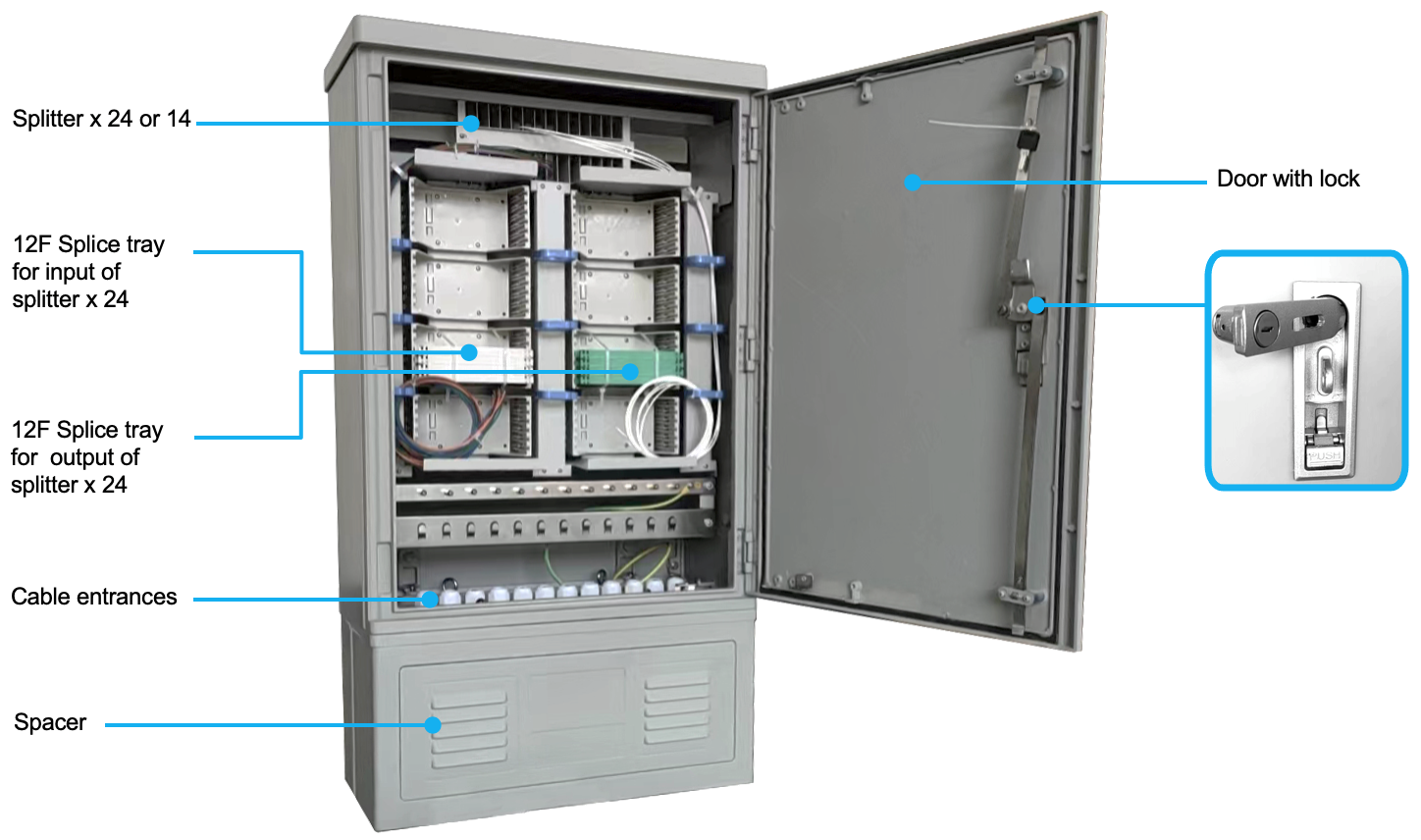

KanesBridge Fiber Distribution Cabinet (FDC-576-TM) delivers robust, high-density fiber connectivity for outdoor networks. Designed to support up to 576 splices and 24 splitters, it ensures secure, efficient distribution at critical local convergence points. Built to meet IEC 61753-1 standards for outdoor durability, the FDC-576-TM guarantees reliable performance in demanding environments.
Key Features:
- IP55 water resistance: Meets IEC 60529 standards
- Versatile functionality: Supports splicing, jumping, and splitting with or without connectors
- Compact high density: Terminations for up to 576/1152 fibers
- Splitter capacity: Accommodates up to 24 splitters
- Universal locking system for secure access
- Independent cable entry: Each cable enters through separate glands for secure, sealed connections
- Mold-resistant materials: Conforms to IEC 60068-2-10 standards, ensuring durability in challenging environments

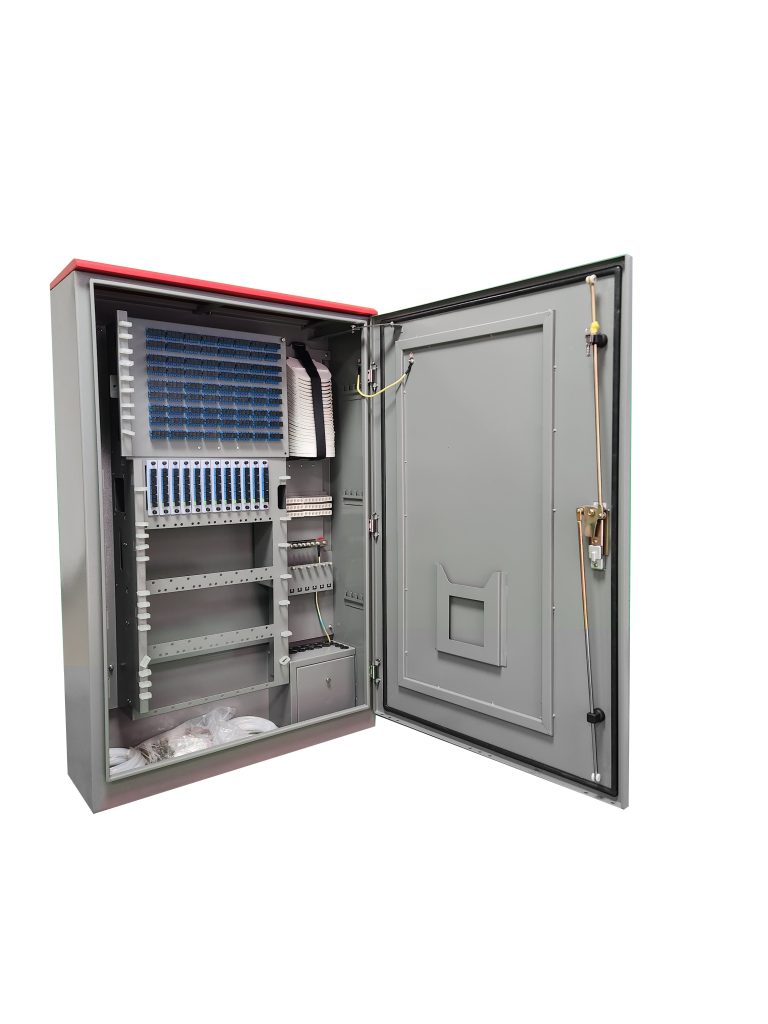

KanesBridge HiDen Fibre Distribution Cabinet (HiDen Type 288/576F) is engineered as a first local convergence point for FTTH networks, offering 288/576 fiber splicing and patching capacity, with or without splitters. Designed to meet IEC 61753 standards for outdoor environments, it delivers superior reliability in the field.
Key Features:
- Premium Durability: Built with stainless steel 304 for unmatched corrosion resistance
- Weather Protection: IP55-rated for water and dust resistance
- High Density: Compact design supports up to 576 ports on a single side
- Flexible Splicing Options: Includes 24 trays for the 288F model, 48 trays for the 576F model, each with 12 fibers
- Safe Operation: Single front-entry door with an opening limit mechanism for added safety
- Customizable & Secure: Universal key system and customizable logo option on the door, with a secure, internal locking mechanism for cable entry
- Versatile Cable Management: Independent entrances for optical cables or tube bundles with sealing and fixture facilities
- Longevity: Designed for over 20 years of above-ground service
- Fiber Protection: 30mm minimum bending radius for safe fiber and cord management, preventing cable damage and ensuring operator safety
KanesBridge FDB-AG-TM
KanesBridge FAT-24-TM
Fiber Distribution Box (FDB)

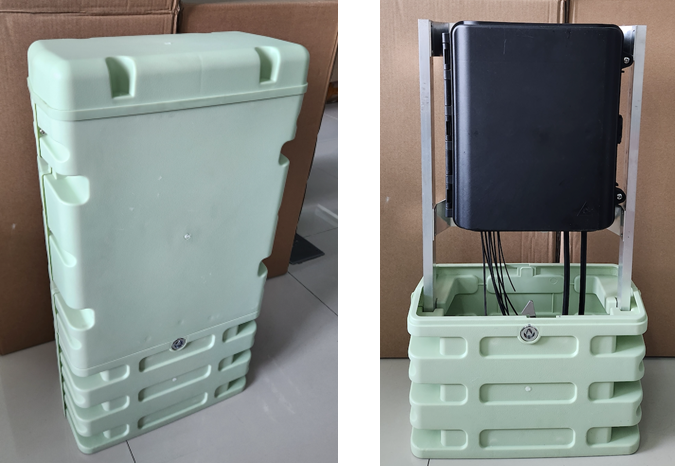

KanesBridge FDB-AG-TM is a robust aboveground Fiber Distribution Box (FDB) designed to house the KanesBridge FAT-24-TM for seamless fiber management. Supporting up to 16 subscribers and one branching outlet, it integrates fiber splicing, splitting, distribution, and storage in a durable, dome-covered enclosure ideal for outdoor installations.
Key Features:
- IP55 water resistance: Complies with IEC 60529 standards
- Integrated splicing and splitter installation
- Fiber management: Ensures optimal bending radius for fiber protection
- Flexible splicing options: Supports both fusion and mechanical splicing
- Splitter capacity: Accommodates up to 5 splitters (1×16, 3×1:8, or 5×1:4 configurations)
- Cable ports: 3 distribution cable ports and 16 drop cable entrances
- Mold-resistant sealants: Conforms to IEC 60068-2-10 standards
- Mechanical sealants: No heat shrink, ensuring secure sealing
- Safe, neat design: Prevents cable damage and installer injury
- Heavy load protection: Maintains enclosure integrity even under pressure, ensuring IP protection
- Durable outdoor use: Meets IEC 61753-1 Table A.1 standards for ground-level environments

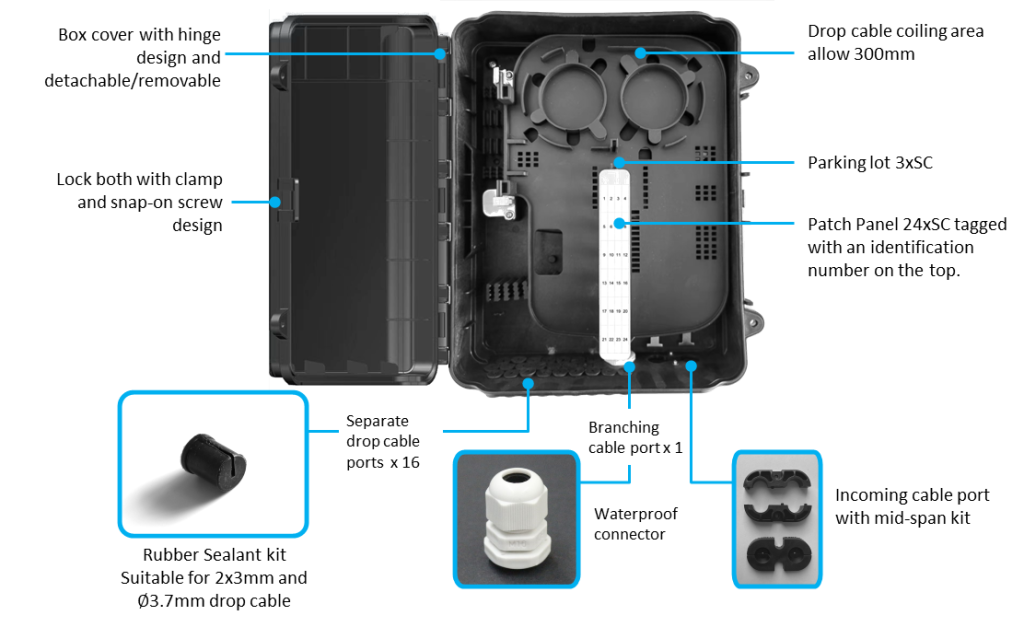

KanesBridge Aerial/Wall mount FDP (FAT-24-TM) is used as a termination point for connecting feeder cable with drop cable in FTTx network system. It is designed to be pole-mounted or wall-mounted.
Key Features:
- IP55 water resistance: Meets IEC 60529 standards for waterproofing
- Integrated splicing and splitter installation: Supports fusion or mechanical splicing
- Optimal fiber management: Ensures proper bending radius for fiber protection
- Splitter capacity: Accommodates up to 5 splitters (1×16, 3×1:8, 5×1:4 options)
- Multiple cable entries: 3 distribution cable ports and 16 separate drop cable entrances
- Mold-resistant sealants: Compliant with IEC 60068-2-10 standards
- Mechanical sealing system: No heat shrink required
- Safe, organized design: Prevents cable damage and operator injury
- Durable under heavy loads: Maintains ingress protection with secure cover closure
- Outdoor-ready: Meets IEC 61753-1 Table A.1 standards for aerial environments
KanesBridge Qucikconnect (ECDB-68)
Pre-connection Distribution Box (QuickConnect)

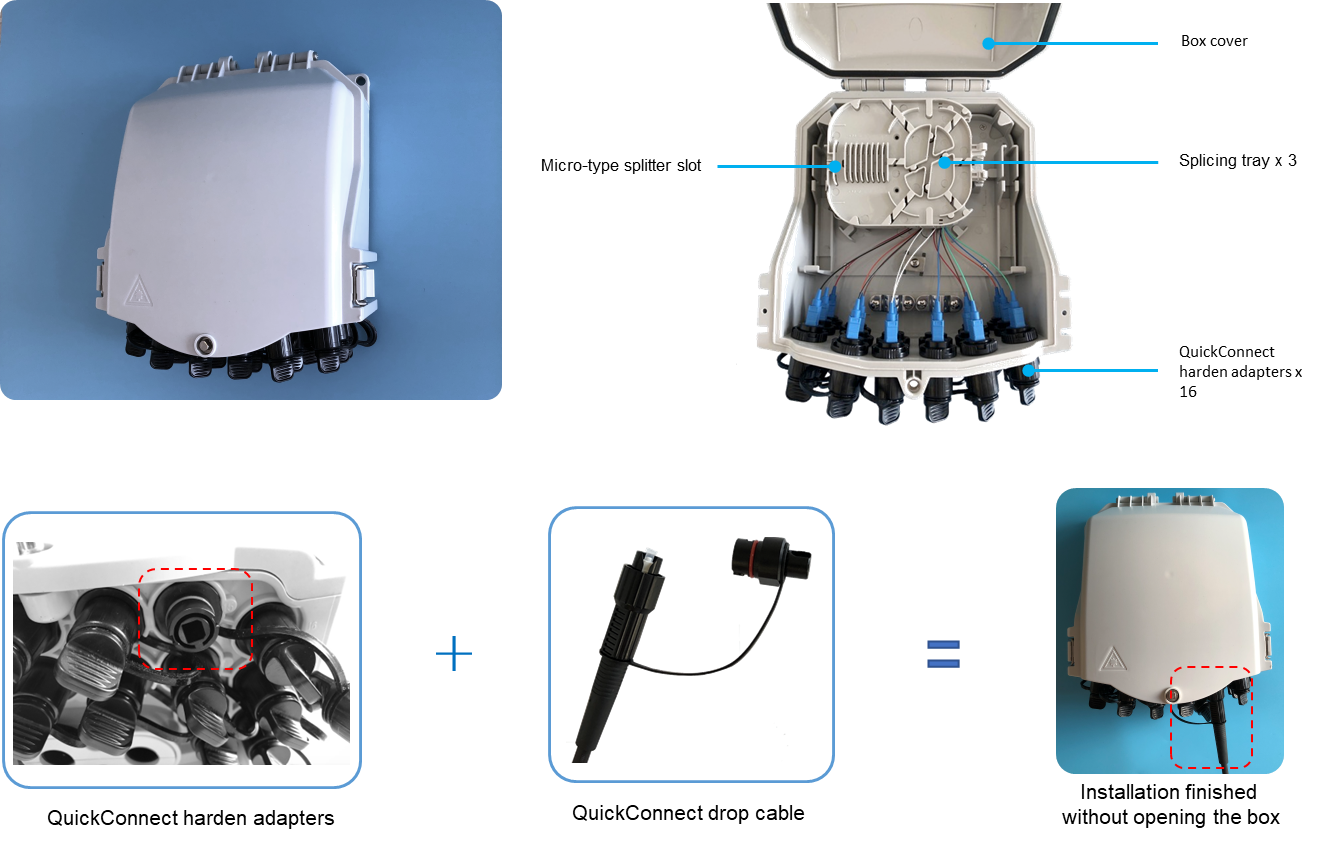

KanesBridge Outdoor Pre-connection Distribution Box series (ECDB-65, ECDB-68) leverages QuickConnect technology for fast and easy FTTH last-mile deployment, supporting up to 16 QuickConnect drop cables.
Key Features:
- Compact and sleek design
- Supports micro 1×8 and 1×16 splitters
- Modular design with dedicated functions
- Plug-and-play QuickConnect: No fusion splicing required
- Easy installation: Attach drop cables without opening the box
- Reliable sealing for fiber protection
- Mid-span cable support
- Flexible, detachable splicing trays
- Versatile mounting: Pole, wall, and aerial in-line installation
- IP65-rated protection for outdoor durability
