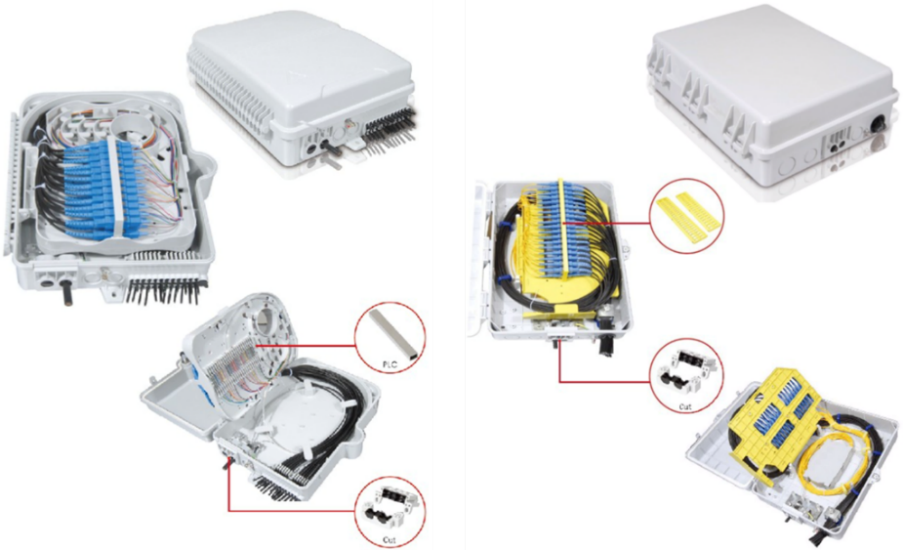

KanesBridge Indoor FAT (24F & 48F)
KanesBridge Indoor Fiber Access Terminal
KanesBridge Indoor FAT (24F & 48F FAT) is designed for MDU buildings, supporting 8-48 subscribers in FTTH networks with integrated splicing, splitting, distribution, and cable connections in a compact, wall-mounted enclosure.
Key Features:
- Available in plastic or metallic options
- Integrated splicing and splitter installation
- Supports multiple splitter configurations (1:32, 1:16, 1:8, 1:4)
- Compatible with SC, LC, and FC connectors
- Mid-span, separate, or multi-in-one drop cable entrances
- Mechanical sealant system (no heat shrink required)
KanesBridge In-Line FAT with Splitter
KanesBridge In-Line Fiber Access Terminal (In-Line FAT) with Splitter
This aerial FAT serves as a fiber distribution point in FTTH networks, offering splicing, termination, splitting, bypass, and cable storage. Supports up to 16 drop cables and integrates 1×8 or 1×16 splitters.
Key Feature:
- Durable plastic body for outdoor and aerial use
- Stainless steel components for corrosion resistance
- Easy installation and re-entry design
- Integrated cassette splitters (1×8 or 1×16) and SC adapters
- Detachable, modular splice trays
- Grounding for lightning protection
- IP55 protection level

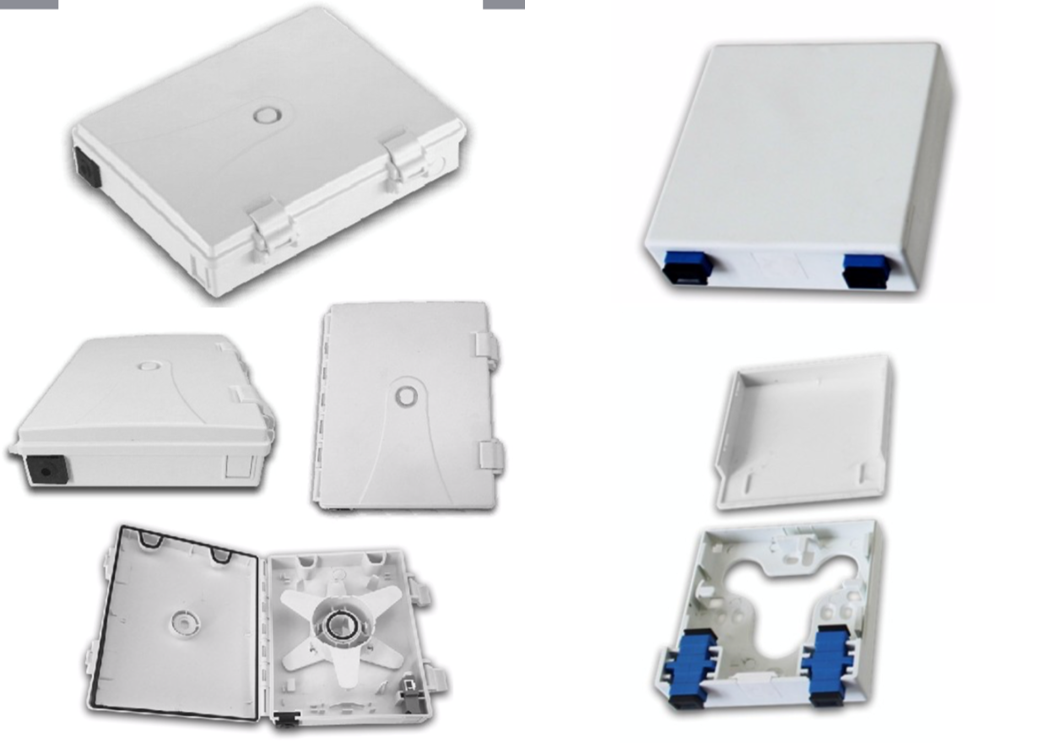

KanesBridge FTB-ID-2F & FTB-OD-2F
KanesBridge Fiber Terminal Box (FTB)
KanesBridge Fiber Terminal Box series (FBT-ID-2F & FBT-OD-2F) is a wall-mounted indoor fiber socket for end-user access, providing fiber splicing, termination, and cable management.
Key Feature:
- Flame-retardant plastic, UL94 compliant
- Integrated splicing and termination functions
- Easy identification with embedded charts and logo positioning
- Supports fiber splicing or mechanical assembly with fast connectors
- Accommodates up to 2 fiber ports (SC or LC, APC or UPC)
- Mechanical locking system (no heat shrink required)
